Metal Floor Decking Roll Forming Machine

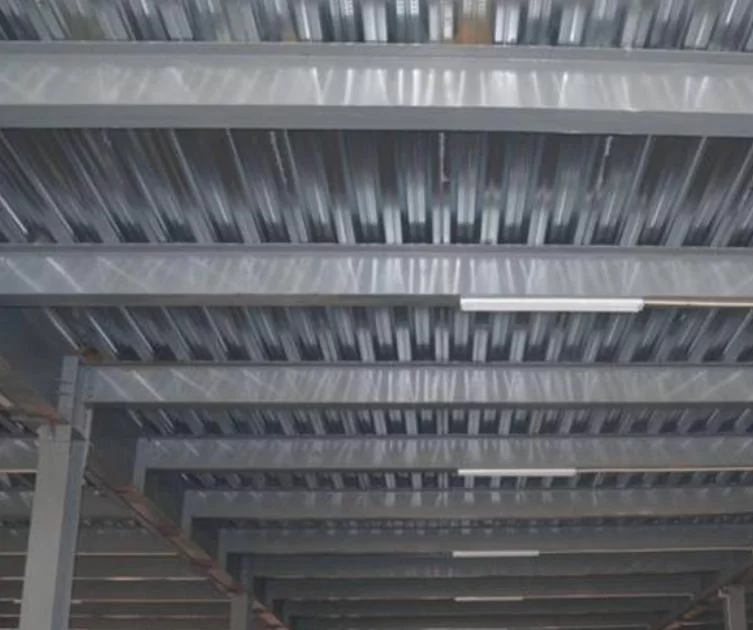

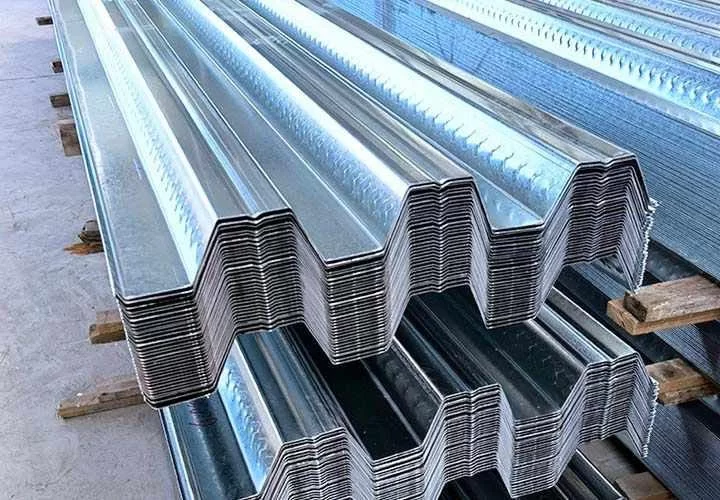

Steel floor deck provides a permanent formwork and reinforcement solution for concrete slabs in commercial, industrial, and residential construction. Combining structural strength with installation efficiency, this profiled decking system creates a composite floor structure that reduces construction time while meeting rigorous safety and load-bearing standards.

Fully Automated Turnkey Solution for Profiled Steel Deck Manufacturing

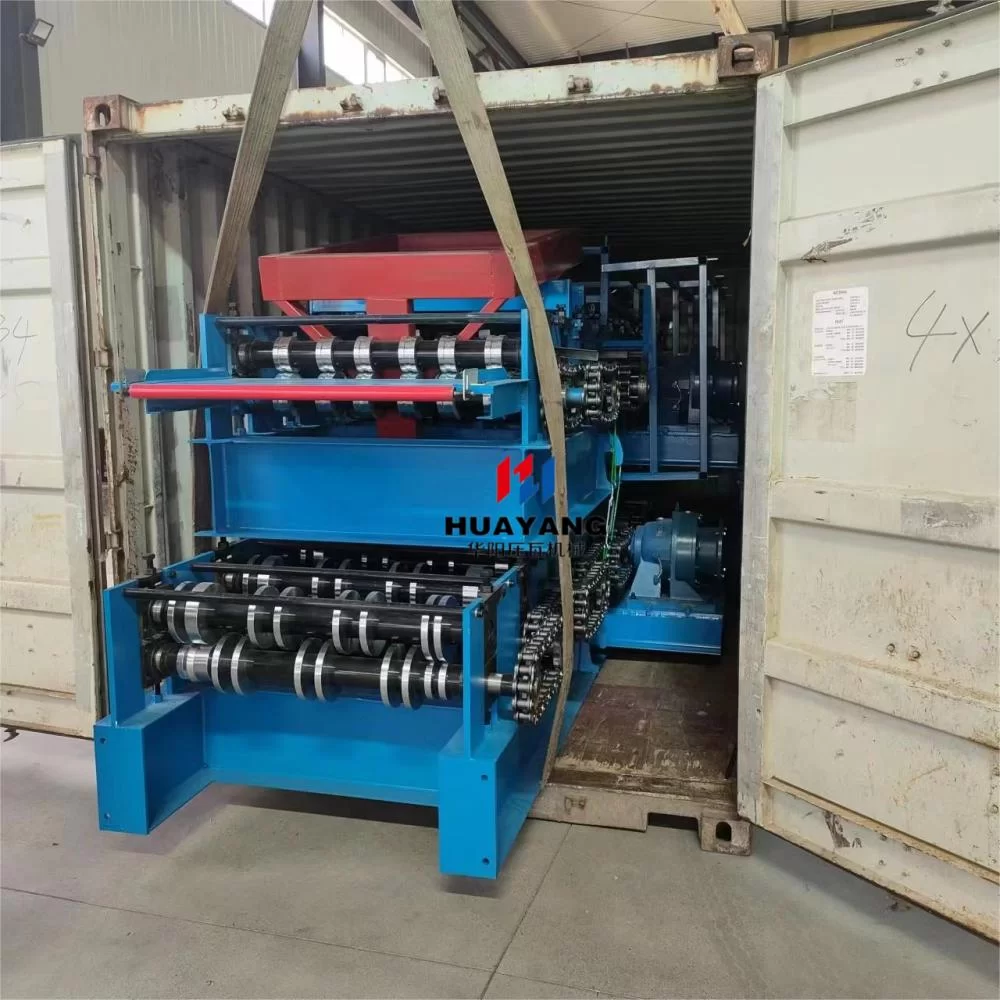

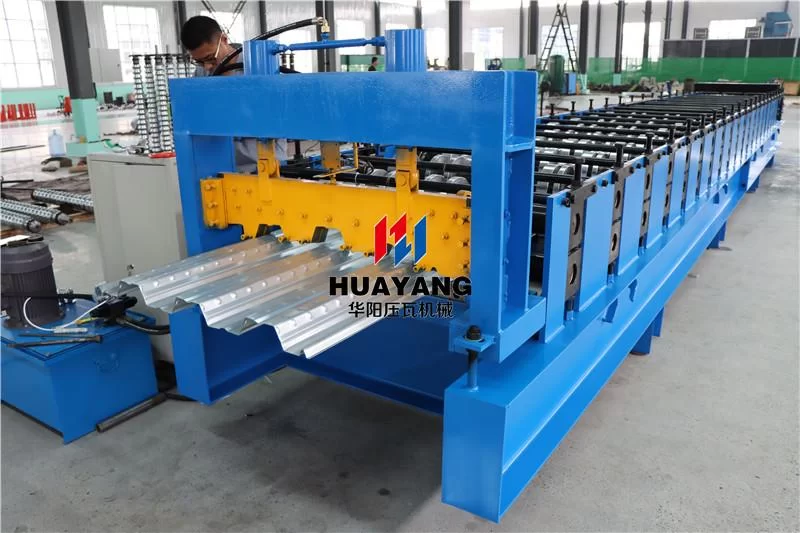

Our advanced metal floor deck roll forming machine represents the industry benchmark for producing high-precision galvanized steel decking profiles used in modern composite floor construction. Engineered for precision, durability, and maximum throughput, this complete production system transforms steel coils into finished floor deck panels with integrated embossing, punching, and cutting capabilities—all in one continuous operation.

System Overview & Key Innovations

Intelligent Production Line IntegrationCoil-to-finished-panel automation with single control system

Modular design allows customization for specific profile requirements

Real-time thickness monitoring and automatic adjustment

Data tracking for production analytics and quality assurance

Precision Engineering Excellence

18-24 forming stations with progressive profile development

Digital servo control for ±0.3mm dimensional accuracy

Hardened alloy forming rolls with specialized surface treatment

Heavy-duty reinforced frame with vibration isolation

Technical Specifications

Production Capacity:

Material Thickness: 0.6mm to 1.6mm (24ga to 16ga)

Material Yield Strength: Up to 550 MPa

Max. Coil Width: 1300mm (51")

Line Speed: 12-30 meters/minute (adjustable)

Motor Power: 30-55kW (main drive system)

Output Specifications:

Profile Depths: 38mm to 76mm (1.5" to 3.0")

Panel Widths: 600mm, 760mm, 914mm (standard)

Length Accuracy: ±1.5mm with dual encoder verification

Daily Output: 5,000-12,000 m² per 8-hour shift
